Multipoint temperature sensor AUREGIS TJ-D is designed for temperature measurement in different levels of measured environment. Temperature sensors can be put in one casing or in separate casings. When they are put in separate casings, measurement points can be spread in various places vertically and horizontally.

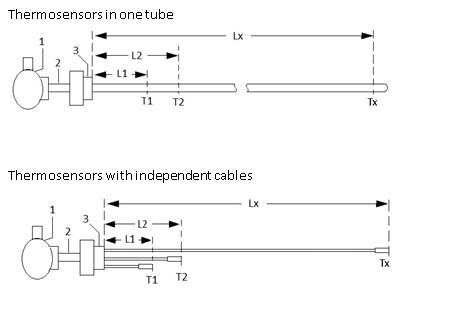

L1, L2, ..., Lx - lengths to the measuring points
T1, T2, ..., Tx - temperatures of measuring points
Protection class of connection head - IP 66.
Process connection and neck extension - stainless steel.
Multipoint temperature sensor TJ-D versions according to the type and number of thermocouple:
- TJ-D2-Pt100, TK-D4-Pt100, ...., TJ-Dx-Pt100, -2, 4, ...., x sensors Pt100;
- TJ-D2-Pt1000, TK-D4-Pt1000, ...., TJ-Dx-Pt1000, -2, 4, ...., x sensors Pt1000;
- TJ-D2-NTC, TK-D4-NTC, ...., TJ-Dx-NTC, -2, 4, ...., x sensors NTC;
- TJ-D2-K, TK-D4-K, ...., TJ-Dx-K, -2, 4, ...., x thermocouples K type ;
- TJ-D2-J, TK-D4-J, ...., TJ-Dx-J, - 2, 4, ...., x thermocouples K type.
Other versions on demand. Sensors can be selected from: Pt100, Pt1000, Ni100, Ni1000, NTC, PTC and thermocouples. Sensors can be with mineral isolation or cables according to temperature range and measuring ambient. Standard signal transmitter 4-20mA or 0-10V can be mounted in to connection head.
